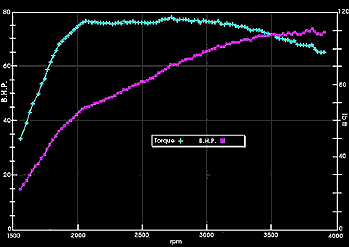

DYNO TEST
MAXIMUM TORQUE: 117.35lb/ft@ 3809rpm
MAXIMUM B.H.P: 74.05 @ flywheel

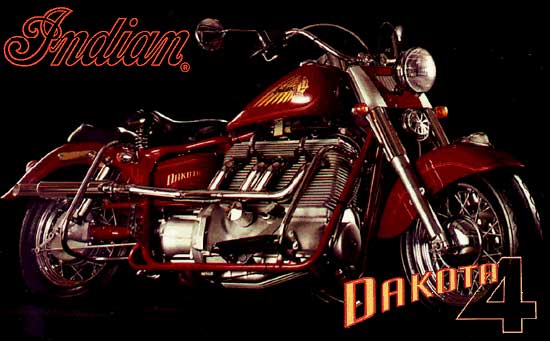

Standard model. Single Weber Carburettor
|
TECHNICAL DATA
FRAME: Cradle, triple braced. Seamless tubular steel.
RAKE: 31degrees.
REAR SUSPENSION: Koni Dial-A-Ride. Adjustable air optional.
FRONT FORK: Telescopic.
FRONT BRAKE: Single 320mm disc. Hydraulic activated. Double disc brakes optional.
REAR BRAKE: Internal expanding.
FINAL DRIVE: Cardan shaft.
TYRES: Avon Roadrunner 90-16. Dunlop Touring Elite optional.
OVERALL LENGTH: 2510mm
OVERALL WIDTH: 500mm
OVERALL HEIGHT: 1195mm
WHEELBASE: 1740mm
GROUND CLEARANCE: 113mm. (100mm with Air shock absorbers.)
WEIGHT: 325 kg (Full tanks)
FUEL CAPACITY: 18 litres. 2.5 litres reserve.
RANGE: 243 Km / 150 Miles
Fuel consumption at 90 Km hr: 7.4 litres per 100Km.
GEAR RATIOS: 1st : 2.88 2nd: 1.72 3rd: 1.75 4th: 1.00
FINAL DRIVE RATIO: 2.91:1 (Series ll ) = 50 Km per 1000 rpm
MOTOR: Inline 4 cylinder, 4-stroke.
COOLING: Air.
DISPLACEMENT: 1845cc
VALVE SYSTEM: O.H.V. 2 per cylinder.
BORE & STROKE: 85.7mm x 80mm
COMPRESSION RATIO: 7.5:1
MAXIMUM R.P.M: 4400
FUEL SUPPLY: Single Weber via electric pump. Fuel injection with full engine management optional.
IGNITION: Distributor (standard models). Electronic ignition optional.
STARTING: Electric
POWER: 74 B.H.P. @3800 RPM (Standard Motor)
TORQUE: 15.9 m-kg (168 N-m) @ 2650 R.P.M. (Standard Motor)
|
|
